Our current antenna range, with the figures from each datasheet. Every model is 50 Ω, factory tuned, and supplied terminated to the connector and cable length you ask for.
Every figure on this page is taken from that model’s datasheet, linked on its card. If you need a band, a length or a connector that is not listed, we build to order — there is no minimum.

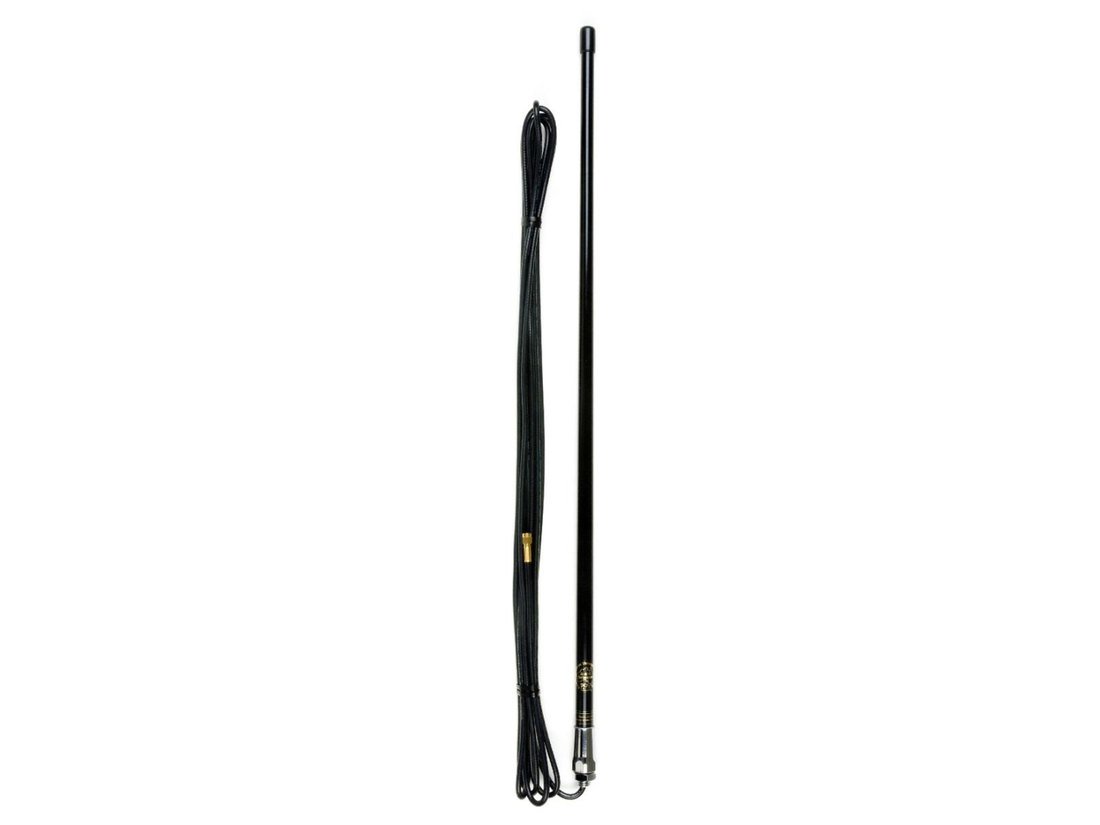

High-gain multiband
680–960 / 1710–2700 MHz
Ground-independent, for fringe and regional sites where the signal is weak and the run is long. Base station, vehicle or panel.
Electrical
| Gain | 7.0 dBi @ 700–1000 MHz · 3.5 dBi @ 1710–2600 MHz |
|---|---|
| Frequency | 680–960 MHz · 1710–2700 MHz |
| VSWR | < 2.0 : 1 over the specified bandwidth |
| Max power | 25 W |
| Impedance | 50 Ω |
| Tuning | Factory pretuned |
Mechanical
| Length | 450 mm |
|---|---|
| Radome | 16 mm fibreglass, black or white |
| Mounting | 12.7 mm threaded stud and nut · spring base optional |
| Termination | FME · SMA · BNC · TNC |
| Cable | 5 m or 10 m ALSR195 low-loss · custom lengths on request |
Low-profile, cable terminated
698–2700 MHz
A compact ABS unit for installs where the antenna cannot stand proud: vending machines, meter cabinets, alarm and fire panels, telemetry.
Electrical
| Gain | 4.5 dBi @ 850 MHz · 7.5 dBi @ 1.8–2.5 GHz |
|---|---|
| Frequency | 698–2700 MHz |
| VSWR | < 1.5 : 1 over the specified bandwidth |
| Max power | 50 W |
| Impedance | 50 Ω |
Mechanical
| Height | 165 mm |
|---|---|
| Radome | 63 mm UV-protected high-impact ABS, black or white |
| Mounting | Stainless steel bracket included |
| Termination | SMA · FME · TNC optional · N-type bottom termination on request |
| Cable | 5 m RG58 low-loss · alternative lengths on request |

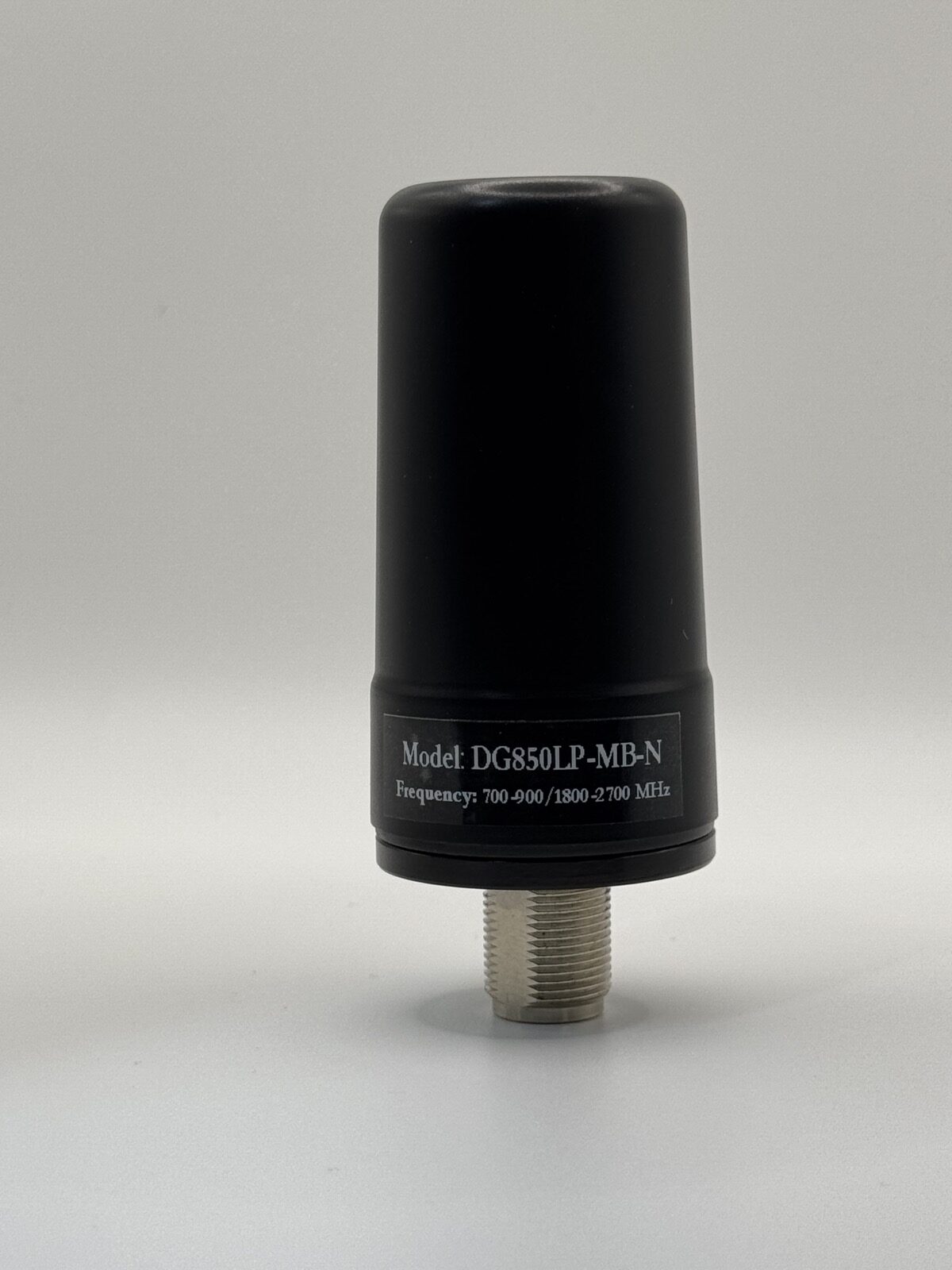

Low profile, ground dependent
700–960 / 1710–2700 MHz
An 80 mm tapered unit for fixed or mobile installs where visual intrusion matters and there is a ground plane to work with.
Electrical
| Gain | 5.0 dBi @ 700–960 MHz · 3.5 dBi @ 1710–2700 MHz |
|---|---|
| Frequency | 700–960 MHz · 1710–2700 MHz |
| VSWR | < 2.0 : 1 over the specified bandwidth |
| Max power | 10 W |
| Impedance | 50 Ω |
| Tuning | Factory pretuned |
Mechanical
| Height | 80 mm |
|---|---|
| Radome | 40 mm tapered ABS, black |
| Mounting | 16 mm threaded stud and nut · bracket optional |
| Termination | FME · SMA · BNC · TNC |
| Cable | 5 m or 10 m RG58 low-loss · custom lengths on request |

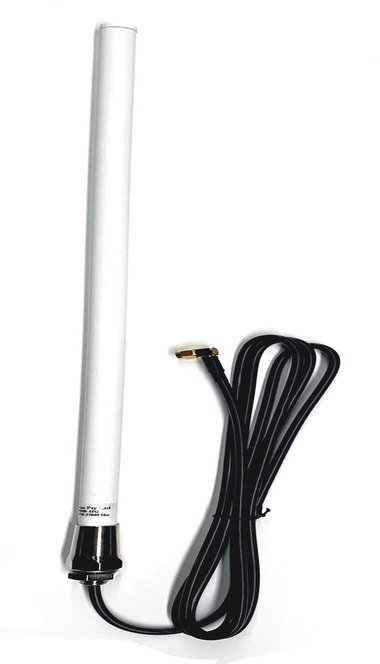

Slim fibreglass multiband
690–960 / 1710–2700 MHz
A 170 mm fibreglass unit for fire alarm signalling equipment, alarm systems, meter cabinets and telemetry.
Electrical
| Gain | 3.5 dBi @ 690–960 MHz · 7.5 dBi @ 1710–2700 MHz |
|---|---|
| Frequency | 690–960 MHz · 1710–2700 MHz |
| VSWR | < 2.0 : 1 across both bands |
| Max power | 50 W |
| Impedance | 50 Ω |
Mechanical
| Height | 170 mm |
|---|---|
| Radome | 16 mm UV-protected fibreglass, black or white |
| Mounting | Stainless steel bracket included |
| Termination | SMA · FME · TNC optional |
| Cable | 3 m or 5 m ALSR195 low-loss · custom lengths on request |
The 3300–3800 MHz band is on the datasheet but its figures are still under test, so they are not published here. Ask us if you need that band.

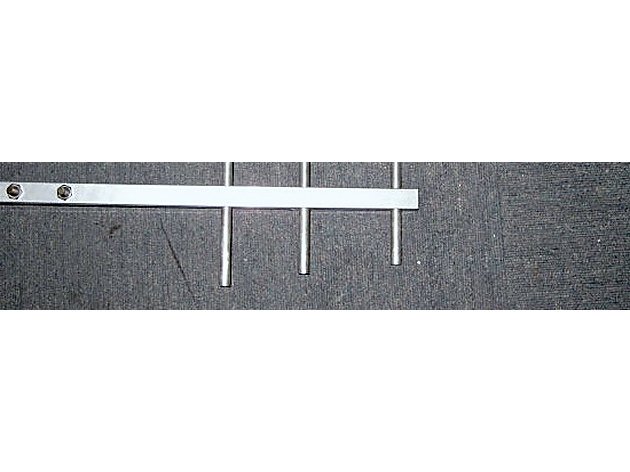

3-element Yagi, directional
698–960 MHz
Directional gain in a 41 cm boom. Compact installs, short range, alarm panels and entry-level IoT.
Electrical
| Gain | 6 dBi forward |
|---|---|
| Front-to-back | 14 dB |
| Frequency | 698–960 MHz · retunable within the bandwidth on request |
| VSWR | < 1.5 : 1 |
| Max power | 150 W |
| Impedance | 50 Ω |
Mechanical
| Boom | 410 mm · 170 mm wide |
|---|---|
| Material | 6061 anodised aluminium · C4 stainless mast clamp |
| Termination | N female at the antenna · N male and SMA male at the cable end |
| Cable | 10 m RG58 double-shielded |

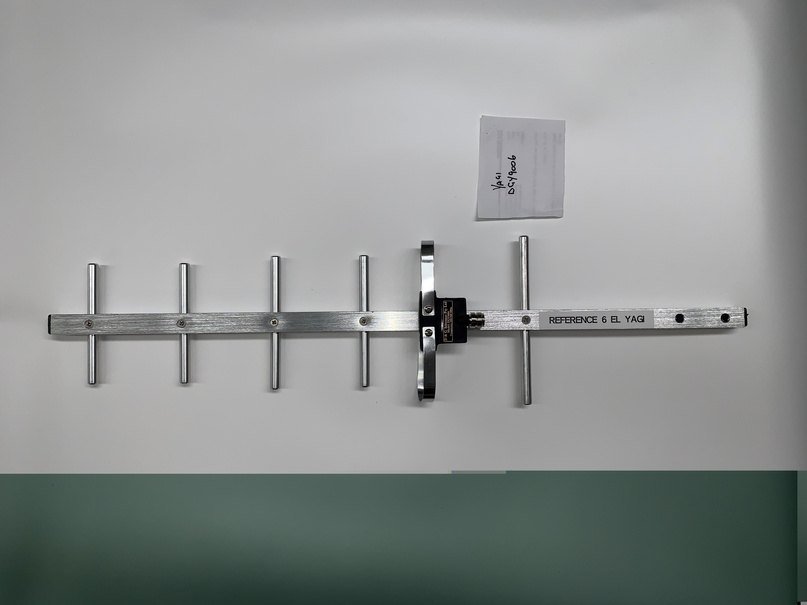

6-element Yagi, directional
700–960 MHz
The long-range version: 12 dBi on a 69 cm boom, for fringe areas, telemetry and high-noise RF environments.
Electrical
| Gain | 12 dBi forward |
|---|---|
| Front-to-back | 14 dB |
| Frequency | 700–960 MHz |
| VSWR | < 1.5 : 1 |
| Max power | 150 W |
| Impedance | 50 Ω |
Mechanical
| Boom | 690 mm · 180 mm wide |
|---|---|
| Material | 6061 anodised aluminium · C4 stainless mast clamp |
| Termination | N female at the antenna |
| Cable | 10 m RG58 double-shielded |
Built to your length and connector
DC – 6 GHz
Any length, any connector pair — SMA, RP-SMA, TNC, N-type, FME, BNC, right-angle. Terminated, tested and labelled before it leaves Penrith. No minimum order.
Every antenna we build in Penrith is tested on our Anritsu Site Master before it is packed. Products made by our supply partners are tested by them, to specification, before they reach us.
Not sure which model suits your panel? Call (02) 4732 3083 and tell us the communicator, the cable run and the enclosure.
